BD400 Electric Lifter
Electric material lift — 551 lb, 13.5 ft reach, 120V with manual crank backup
About the BD400 Electric Lifter

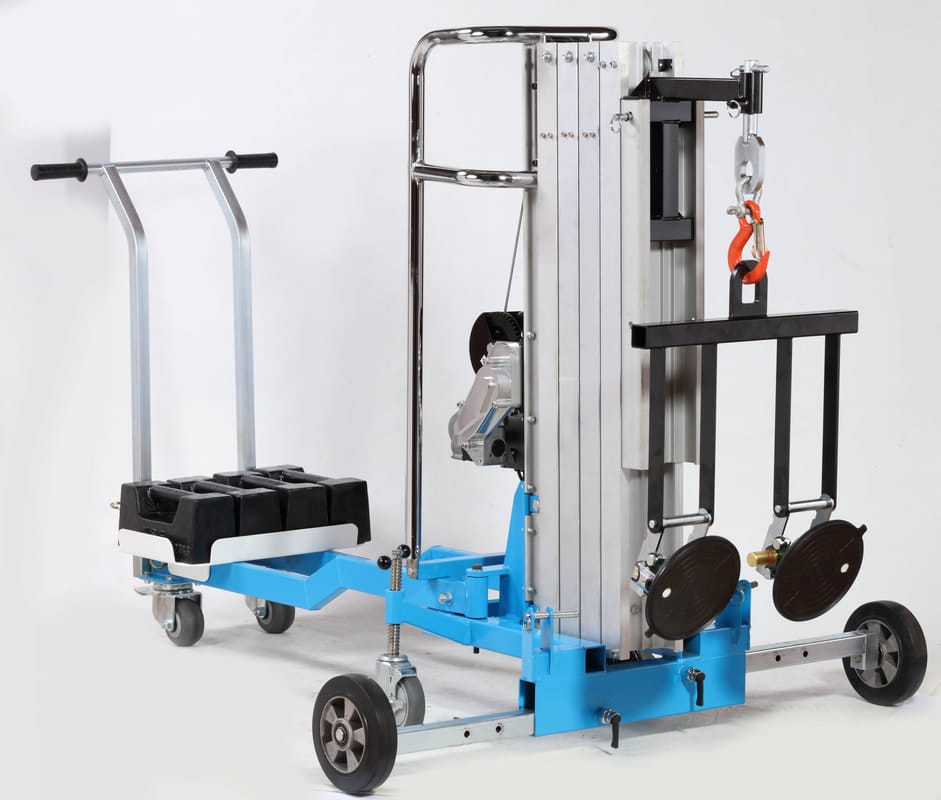

The BD400 is a portable electric material lifter capable of lifting heavy loads and operating in small spaces. 551 lb (250 kg) capacity, 13.5 ft (4.1 m) maximum lift height. The 120V electric motor with speed-adjustable switch lifts loads in seconds, with a manual crank backup for lowering the rails when needed. Sturdy expanding and rotating wheels make it easily transportable, and the adjustable legs let you stabilize on sloping ground or against walls. Telescoping aluminum mast with anti-torsion rails. Counterweight tray for added balance on heavier loads. Multi-purpose attachments — Forks, Pipe/Box Cradle, and Jib Crane — make the BD400 a versatile choice for glass replacement, HVAC, electrical, and general construction material handling.
Key Features
- 551 lb (250 kg) maximum capacity
- 13.5 ft (4.1 m) maximum lift height
- 120V electric motor with speed-adjustable switch
- Manual crank backup for lowering rails
- Telescoping aluminum mast with anti-torsion rails
- Counterweight tray for added balance on heavier loads
- Expanding rotating wheels (easy transport)
- Adjustable legs for sloping ground and tight spaces

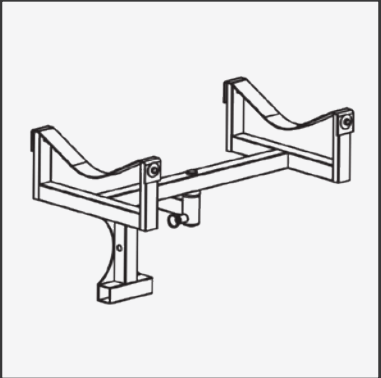

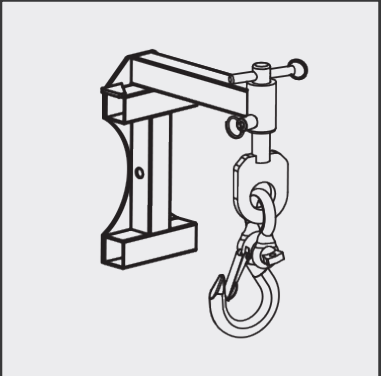

- Multi-purpose attachments: Forks, Pipe/Box Cradle, Jib Crane
- Setup in 30 seconds — no tools required
Application & Technical Notes
Indoor vs. Outdoor Use
- Smooth-floor optimized for indoor warehouse and construction use
- Outdoor use on flat, compacted surfaces only — not rough terrain
- 120V standard outlet power — no generator or special wiring required
Load Handling

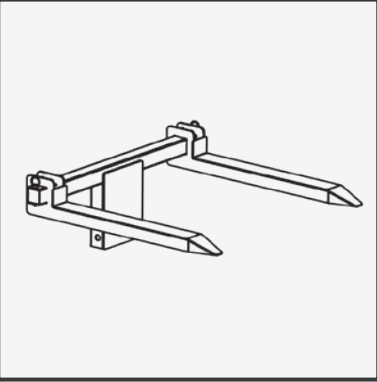

- 551 lb (250 kg) capacity with fork attachment for pallets and bundles
- Optional platform attachment for loose materials and equipment
- Manual backup power via hand crank if electrical power is unavailable
Technical Specifications
