Cargo Lifter ES Series

Name: ES Series Electric Cargo Lifter — 660 lb, Up to 27 ft
Brand: Prolift Canada
Availability: InStock

Electric cargo lifters — 660 lb capacity, three reach options (16, 23, or 27 ft)

Select model:

300 kg (660 lbs)

Max Load Capacity (at 15″ from boom)

250 kg (551 lbs)

Max Load Capacity (at 27″ from boom)

4.98 m (16′4″)

Lifting Height (Forks Up)

5.53 m (18′2″)

Lifting Height (Forks Down)

⚡Same-day quote response

🛡️12-month parts & labour warranty

🇨🇦Canadian stock, no import delays

✓Authorized equipment distributor

Financing available on orders over $5,000 CAD— call to discuss terms

Call 778-743-4451

Commercial pricing. Contact us for a tailored quote

CE CertifiedASME B30.20

🍁Ships from Canada

✓No Import Duties

$CAD Pricing

🔧Local Warranty Service

📍Based in BC

About the Cargo Lifter ES Series

The ES Series cargo lifters are heavy-duty electric material lifters designed for HVAC installation, steel framing, electrical work, and industrial maintenance. All three models share the same 660 lb (300 kg) maximum load capacity — what differs is the lifting reach: ES-550 reaches 16′4″, ES-700 reaches 23′5″, and ES-850 reaches 26′9″. Choose the model that matches your typical ceiling height. Electric-powered lift with single-operator setup, folding legs for easy transport, anti-fall mast safety system, and fork or platform attachment options. The ES Series is the choice for contractors who move heavy materials on active commercial construction sites every day.

Key Features

All three models: 660 lb (300 kg) max capacity at 15" from boom
Three reach options: 16′4″ (ES-550), 23′5″ (ES-700), or 26′9″ (ES-850)
Electric-powered lift — single-operator operation
Folding legs for compact transport and setup
Anti-fall mast safety system
Fork and platform attachment options
Ideal for HVAC, steel framing, and industrial maintenance

Application & Technical Notes

Lift Height Selection

ES-550: 16 ft — warehouse racking, mezzanine loading, single-storey construction
ES-700: 23 ft — two-storey construction, high warehouse shelving, HVAC rough-in
ES-850: 27 ft — multi-storey construction, high-bay warehouses, steel framing

Floor & Terrain

Smooth-floor rated — best on concrete, tile, and compacted surfaces
Not recommended for gravel, mud, or uneven outdoor terrain
Locking casters prevent movement under load during lifting operations

Power Requirements

Standard 110V outlet — no generator or three-phase power needed
Full-day operation on typical lift cycles without overheating
Emergency lowering system operates without power

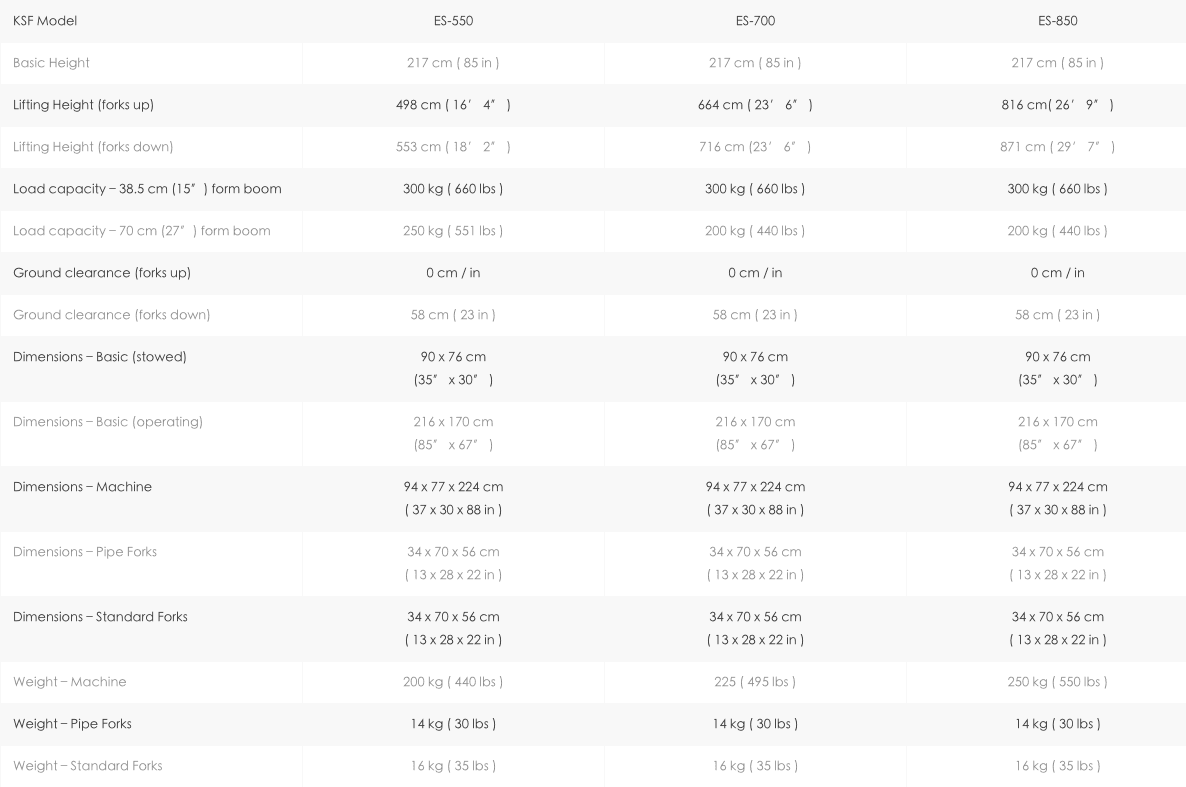

Technical Specifications— ES-550

Model Number	ES-550
Max Load Capacity (at 15″ from boom)	300 kg (660 lbs)
Max Load Capacity (at 27″ from boom)	250 kg (551 lbs)
Lifting Height (Forks Up)	4.98 m (16′4″)
Lifting Height (Forks Down)	5.53 m (18′2″)
Basic Height	2.17 m (85″)
Machine Weight	198 kg (437 lbs)
Power Source	Electric-powered lift
Platform	Forks included (64 × 56 cm)
Warranty	12 months parts and labour
