Portable Lifter CM340
Electric portable lift — 290 lb @ 10 ft, 11 ft max, lightest in the range
The compact, lower-price option in the CM Series — 11 ft max reach.
Ordering 3+ units?
About the Portable Lifter CM340

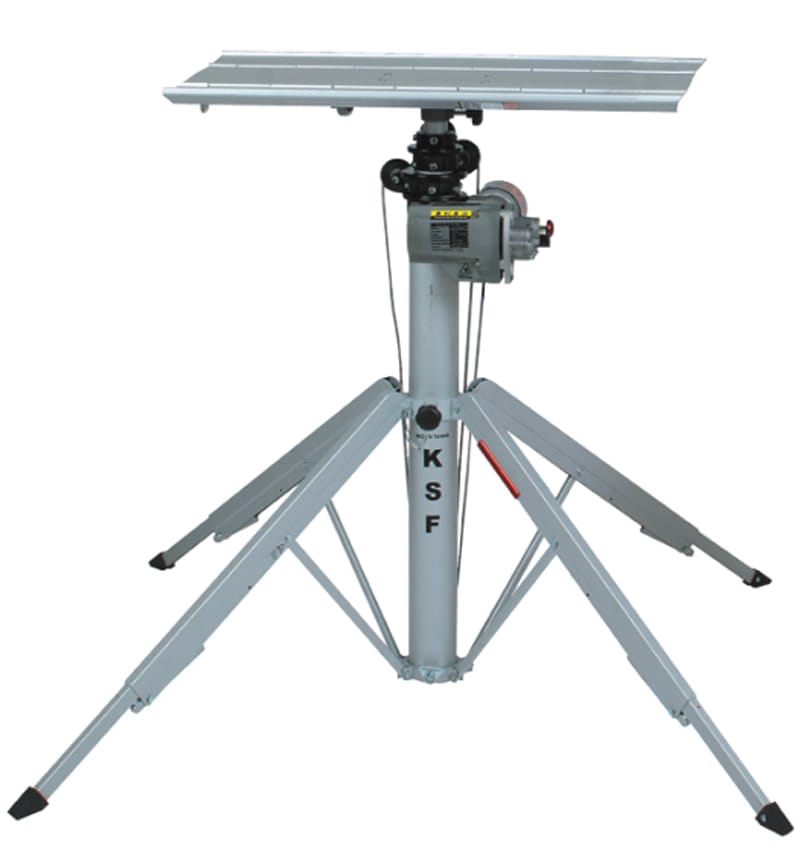

The CM340 is the entry-level portable lift in the CM Series — lighter, more compact, and more affordable than the CM520. 290 lb (132 kg) capacity at 10 ft, with a maximum reach of 11 ft (3.35 m). Variable-speed 110V electric motor with manual backup (use a cordless drill or hand crank if no power is available). Telescoping aluminum mast, telescoping legs for uneven surfaces, leveling system, and overload cut-out for safety. Sets up in under 30 seconds with no tools. Ideal for light awning work, signage, small pergola sections, and any overhead installation under 290 lbs. Wheels are an optional accessory.
Key Features
- 290 lb (132 kg) capacity at 10 ft
- 11 ft (3.35 m) maximum lift height
- Variable-speed 110V electric motor (manual backup via drill or crank)
- Telescoping aluminum mast (strong, light, compact when stowed)
- Telescoping legs for uneven surfaces and stairs
- Leveling system ensures the mast is vertical before operation
- Overload cut-out + emergency stop button
- Folds for transport (lightest in the CM Series)
- Sets up in under 30 seconds, no tools required
Application & Technical Notes
Compact Advantage
- Lightest in the CM Series at 46 lb (21 kg) — easy one-person carry
- Folds to 38 in (96.5 cm) — fits in compact trucks and work vans
- Leveling system ensures mast is vertical before operation on uneven surfaces
Power & Backup
- 110V variable-speed motor for smooth, controlled lifting
- Manual backup via cordless drill or hand crank if no power on site
- Overload cut-out protects motor and prevents unsafe lifting
Ideal For

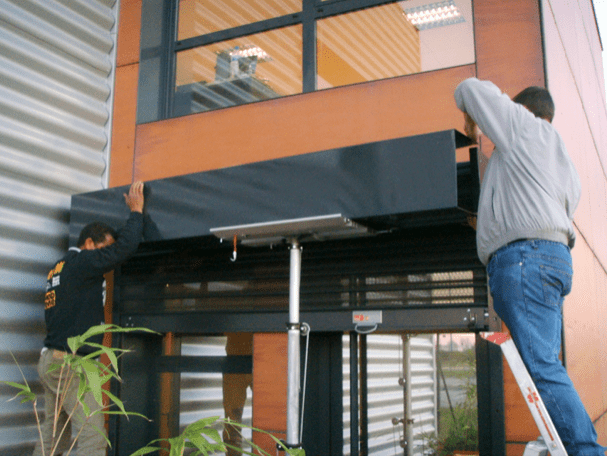

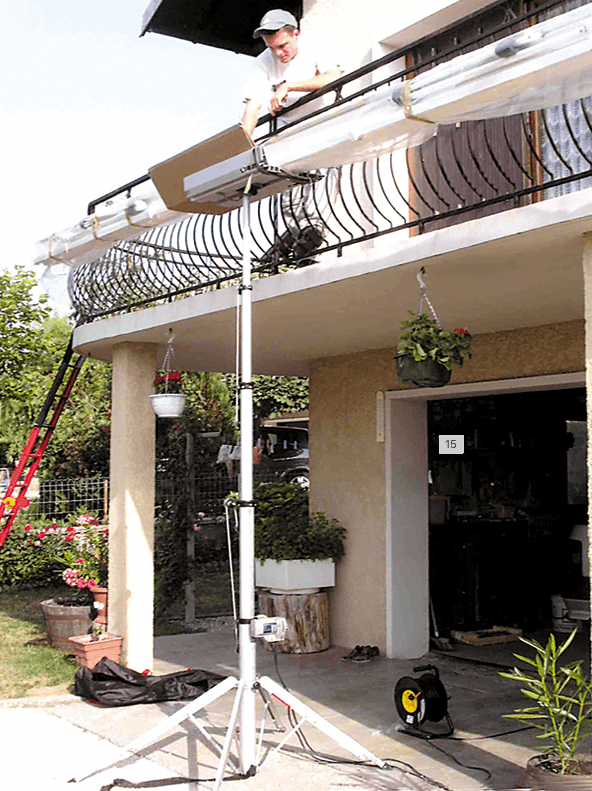

- Residential awning installation (under 11 ft ceiling height)
- Light HVAC work — exhaust fans, mini-splits, small duct runs
- Interior renovations — drywall overhead, light fixture mounting

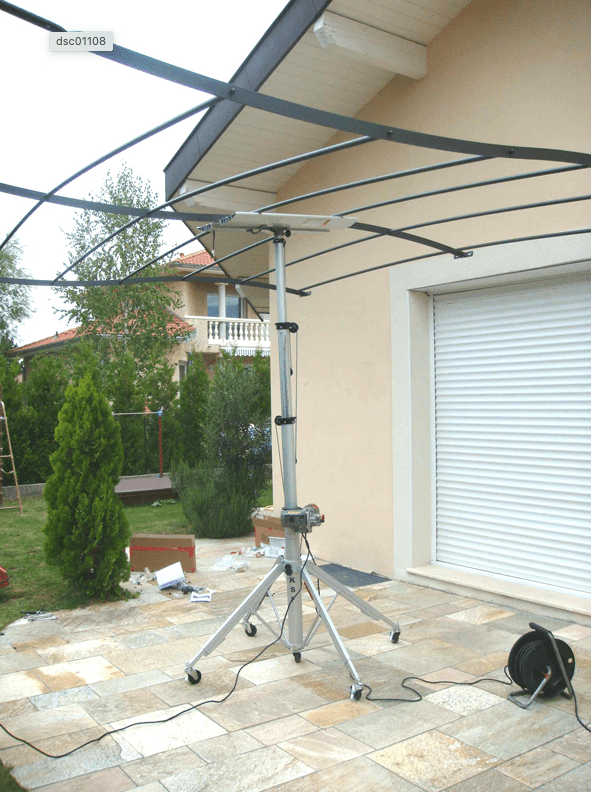

- Small pergola and patio cover installs
Technical Specifications
