Super Lifter CA400

About the Super Lifter CA400

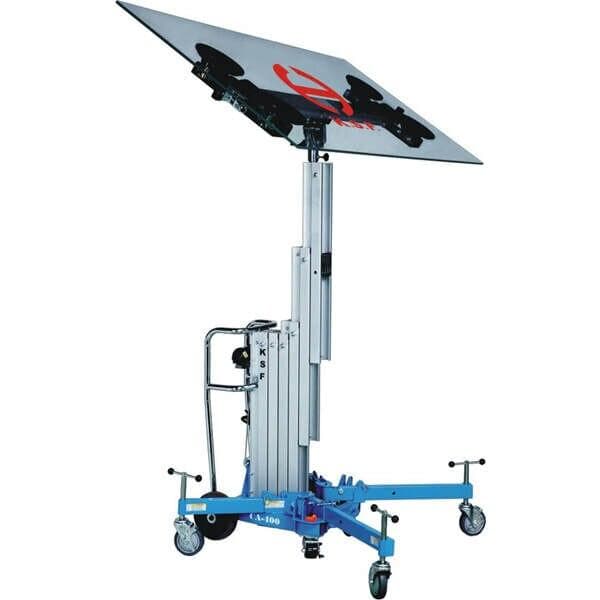

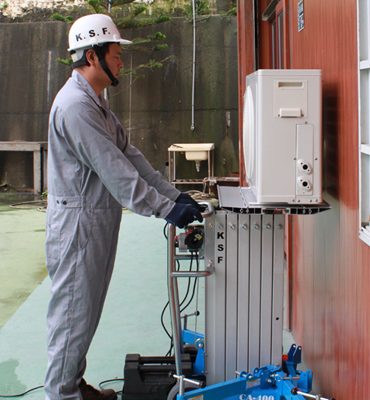

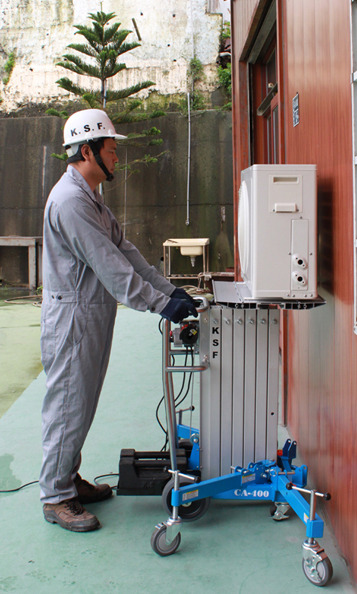

The CA400 Super Lifter is a compact electric lift for overhead panel, drywall, awning, HVAC, and glazing installation. Loading height is only 38 in (96 cm) and it sets up in under 30 seconds. Available in two attachment configurations: the CA400-P platform attachment supports up to 330 lb (150 kg) for drywall, garage doors, awnings, and ceiling panels; the CA400-GL 4-cup glass cradle handles up to 264 lb (120 kg) for interior mirror, partition, and storefront glass installation. 110V variable-speed electric motor with manual backup (cordless drill or hand crank if no power is available). Telescoping aluminum mast reaches 13 ft (3.96 m). 5" castors, adjustable legs for uneven surfaces, overload cut-out, emergency stop. The CA400-P is available for direct online purchase; contact us for CA400-GL pricing.

Key Features

• Two attachments: platform (330 lb) or 4-cup glass cradle (264 lb)
• 13 ft (3.96 m) maximum lift height
• Loading height only 38 in (96 cm); compact and maneuverable
• 110V variable-speed electric motor with manual backup
• Sets up in under 30 seconds, no tools required
• Telescoping aluminum mast — strong, light
• Adjustable legs for uneven surfaces and walls
• 5" castors for jobsite mobility
• Overload cut-out + emergency stop for safety

Technical Specifications— PLATFORM (CA400-P)
