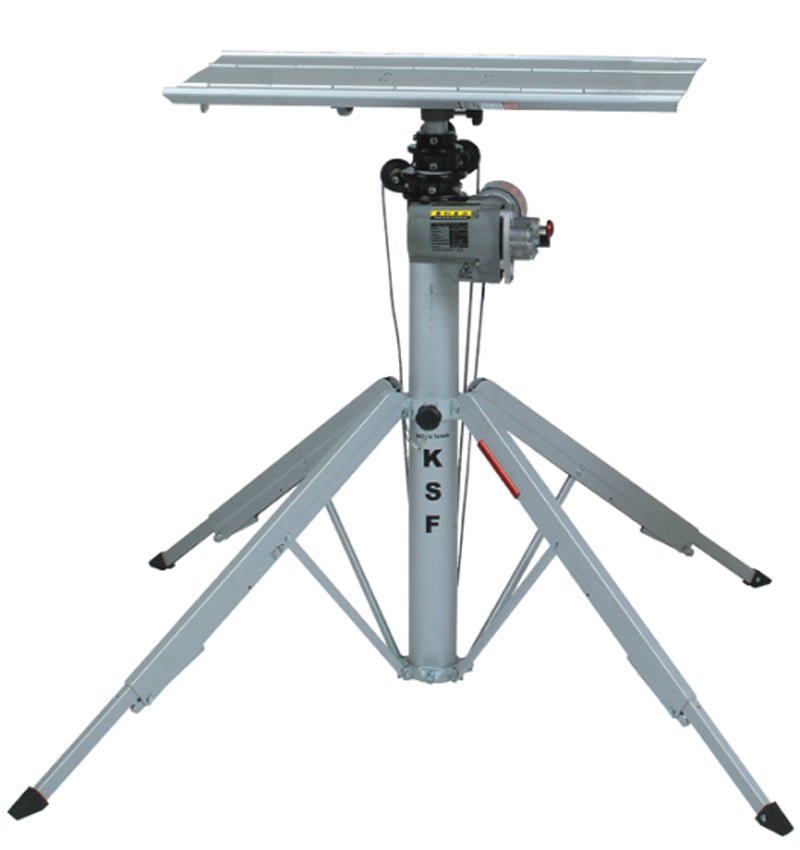

Portable Lifter CM520 — primary product photo

Portable Lifter CM520

Electric portable lift — 300 lb @ 11 ft, 16 ft max, variable speed, folds for pickup transport

136 kg @ 3.35 m (300 lbs @ 11 ft)
Max Load Capacity
4.88 m (16 ft)
Max Lift Height
117 cm (46 in)
Basic Height
38 kg (83 lbs)
Lifter Weight
Starting at $5,150 CAD+ applicable taxes
Most Popular

There’s always a day you’re glad it goes 16 ft instead of 11 ft.

⚡Same-day quote response
🛡️12-month parts & labour warranty
🇨🇦Canadian stock, no import delays
✓Authorized equipment distributor

Ordering 3+ units?

Available for direct purchase, ships Canada-wide
CE CertifiedCSA Compliant
🍁Ships from Canada
✓No Import Duties
$CAD Pricing
🔧Local Warranty Service
📍Based in BC

About the Portable Lifter CM520

The CM520 is the high-reach portable lift of choice for awning installers, pergola crews, and HVAC contractors who need to hold heavy loads overhead while fastening. 300 lb (136 kg) capacity at 11 ft, with a maximum reach of 16 ft (4.88 m). 110V variable-speed electric motor lets one person fine-position loads precisely — with manual cordless drill or hand-crank backup for sites without power. Includes wheels for mobility (optional on the CM340). Telescoping aluminum mast, telescoping legs, leveling system, overload cut-out. Folds compact for pickup truck transport. The CM520 is the tool that pays for itself the first time you use it — eliminating the need for a second crew member on overhead work.

Key Features

  • 300 lb (136 kg) capacity at 11 ft
  • 16 ft (4.88 m) maximum lift height
  • Variable-speed 110V electric motor (manual backup via drill or crank)
  • Wheels for mobility included
  • Telescoping aluminum mast (strong, light, compact when stowed)
  • Telescoping legs for uneven surfaces and stairs
  • Folds for transport in a standard pickup truck bed
  • Overload cut-out + emergency stop button
  • Sets up in under 30 seconds, no tools required

Application & Technical Notes

Setup & Transport

  • Single-operator setup in under 30 seconds — no tools required
  • Folds to 46 in (117 cm) — fits in standard 6 ft pickup truck bed
  • Transport wheels included for rolling across jobsite floors

Power & Backup

  • 110V variable-speed motor plugs into any standard jobsite outlet
  • Manual backup via cordless drill or hand crank — no generator needed
  • Overload cut-out and emergency stop button prevent motor damage

Common Applications

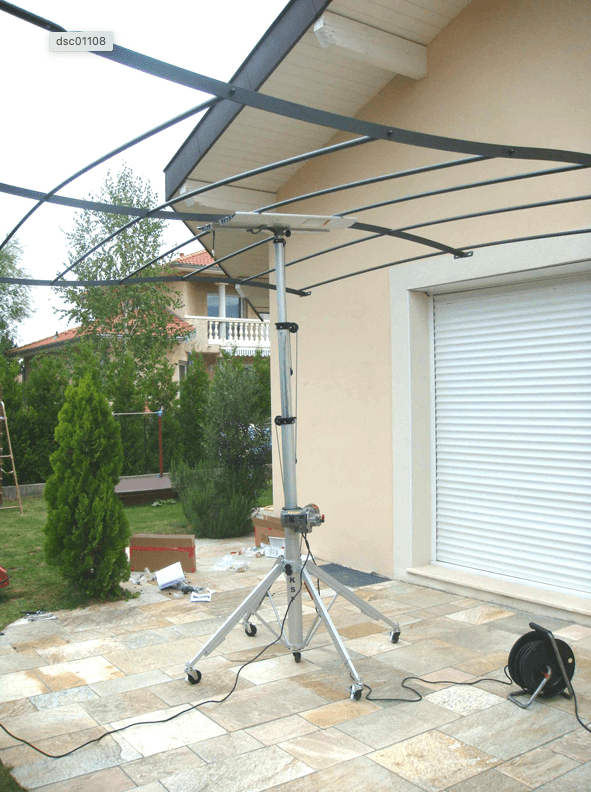

  • Commercial pergola and shade structure installation (up to 16 ft)
  • HVAC ductwork, mini-split, and exhaust fan mounting

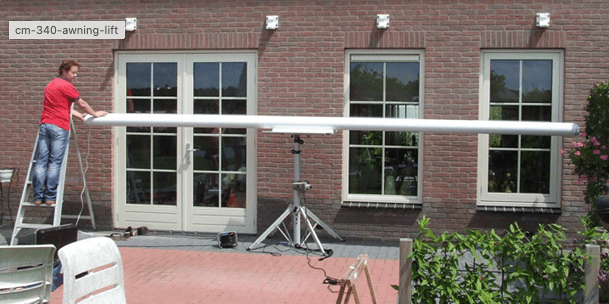

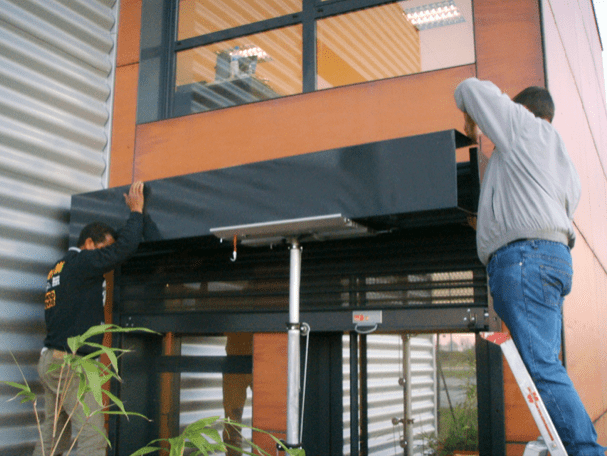

  • Awning installation for storefronts and patios
  • Overhead signage and solar panel positioning

Technical Specifications

Model NumberCM520
Max Load Capacity136 kg @ 3.35 m (300 lbs @ 11 ft)
Max Lift Height4.88 m (16 ft)
Basic Height117 cm (46 in)
Lifter Weight38 kg (83 lbs)
Power Source110V electric motor (variable speed) — manual backup
OperationSingle operator
TransportFolds, fits in pickup truck bed (wheels included)
SetupUnder 30 seconds, no tools
Warranty12 months parts and labour

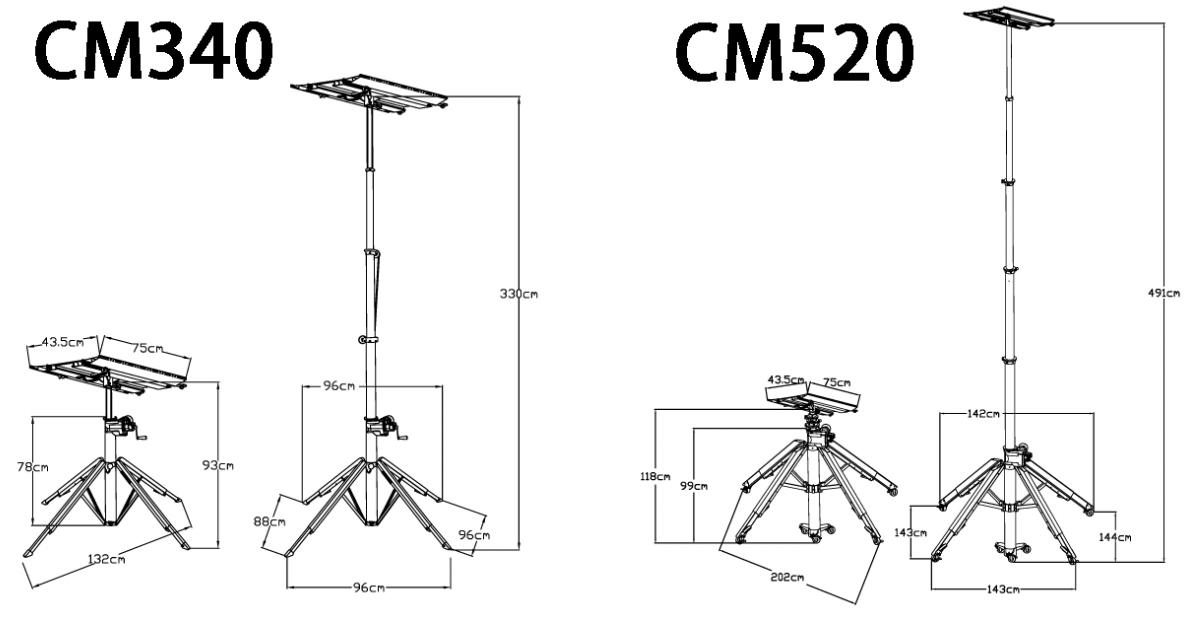

CM520 vs. CM340 — Which Portable Lifter Do You Need?
Compare reach, capacity, weight, and price side by side.
